Intelligent Bark Beetle Identifier (IBBI)

IBBI is a Python package that provides a simple, unified interface for detecting and identifying bark and ambrosia beetles (Curculionidae: Scolytinae and Platypodinae) in images with trained, benchmarked computer vision models.

It finds every specimen in an image, names it at the deepest taxonomic level it can trust (species, genus, tribe or subfamily) and says when it does not recognise a beetle, instead of forcing a species name. It also gives access to the Bark and Ambrosia Beetle Detection Benchmark and scores any model on it with the benchmark's own evaluator.

import ibbi

pipe = ibbi.create_pipeline()                 # arthropod detector + hierarchical classifier
result = pipe.predict("trap_sample.jpg")
for box, rec in zip(result["boxes"], result["classifications"]):
    print(box, rec["reported"])               # e.g. "Xyleborus volvulus" or "Euwallacea sp. (species undetermined)"

The need for automation

Bark and ambrosia beetles are among the most damaging invasive forest insects, and quarantine, eradication and interception decisions are made at the level of species. Identification by hand is:

  • slow: trap samples and interception lots can contain hundreds of specimens;
  • dependent on rare expertise: many congeners are near-identical, and few taxonomists can separate them;
  • a bottleneck: surveillance programmes generate far more material than can be identified by hand.

Automated identification helps only if it is honest about its limits. A model that always answers with one of its trained species will confidently misname every species it has never seen. IBBI therefore pairs detectors with a hierarchical classifier that abstains ("Euwallacea sp.", "unrecognised"), and every model is benchmarked on species it has never seen.

Key features

Feature Entry point Details
Two-stage identification (recommended) ibbi.create_pipeline() arthropod detector + hierarchical classifier, answers at the deepest trusted level
Arthropod detection ibbi.create_model("arthropod_detector") YOLO11x trained on 307,421 images from 14 sources; Co-DINO (EVA-02-L) for the highest accuracy
Hierarchical classification ibbi.create_model("hierarchical_classifier") DINOv3 or BioCLIP 2; subfamily, tribe, genus, species with calibrated probabilities and novelty scores
One-step species detection ibbi.create_model("species_detector") six architectures, 65 species
Zero-shot detection ibbi.create_model("zero_shot_detector") Grounding DINO, OWLv2, YOLO-World, SAM 3
Embeddings model.extract_features() fine-tuned classifier backbones
Benchmark data ibbi.get_dataset(split) benchmark v2.0.1, pinned revision
Evaluation ibbi.Evaluator(model) reference evaluator, hierarchical metrics, embedding metrics
Explainability ibbi.Explainer(model) LIME and SHAP for every model

Examples

Two held-out benchmark trays (chosen before running the models): a trained species, Platypus koryoensis, and a species the models never saw, Platypus cylindrus, whose correct answer is "Platypus sp.".

Input Species detector Pipeline (detector + DINOv3 classifier)

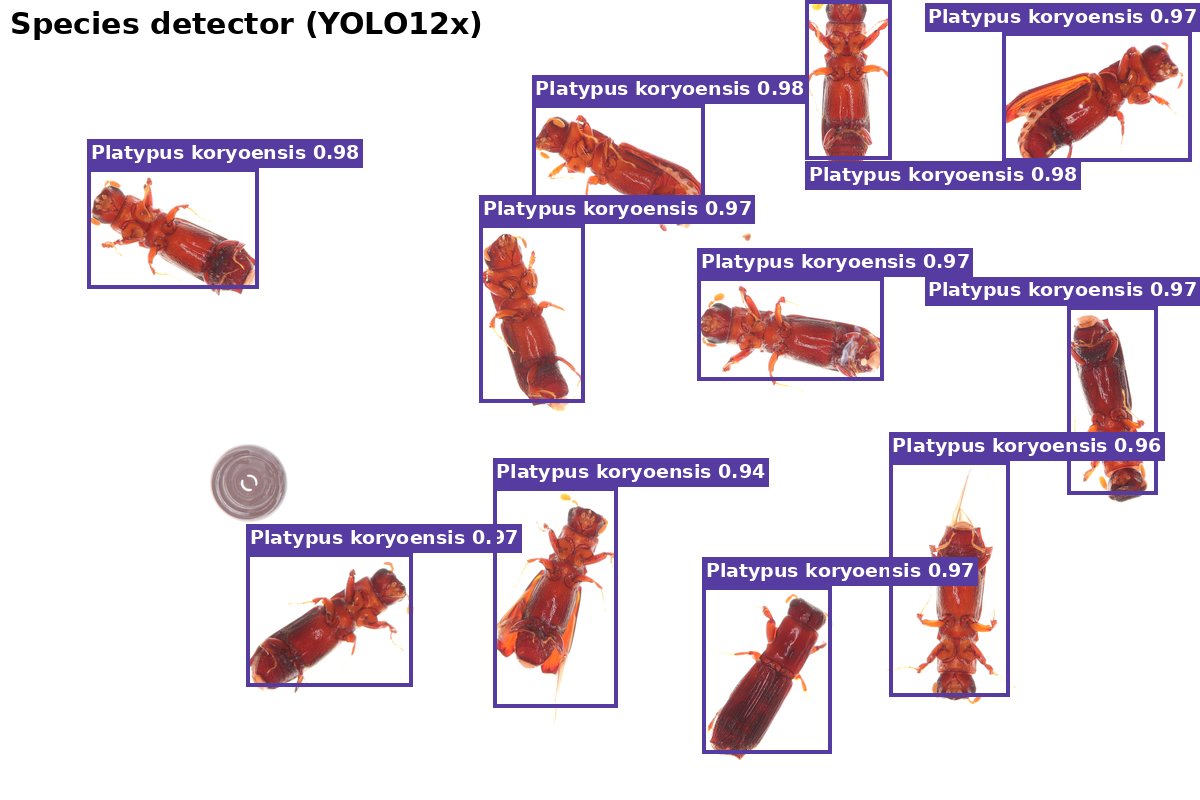

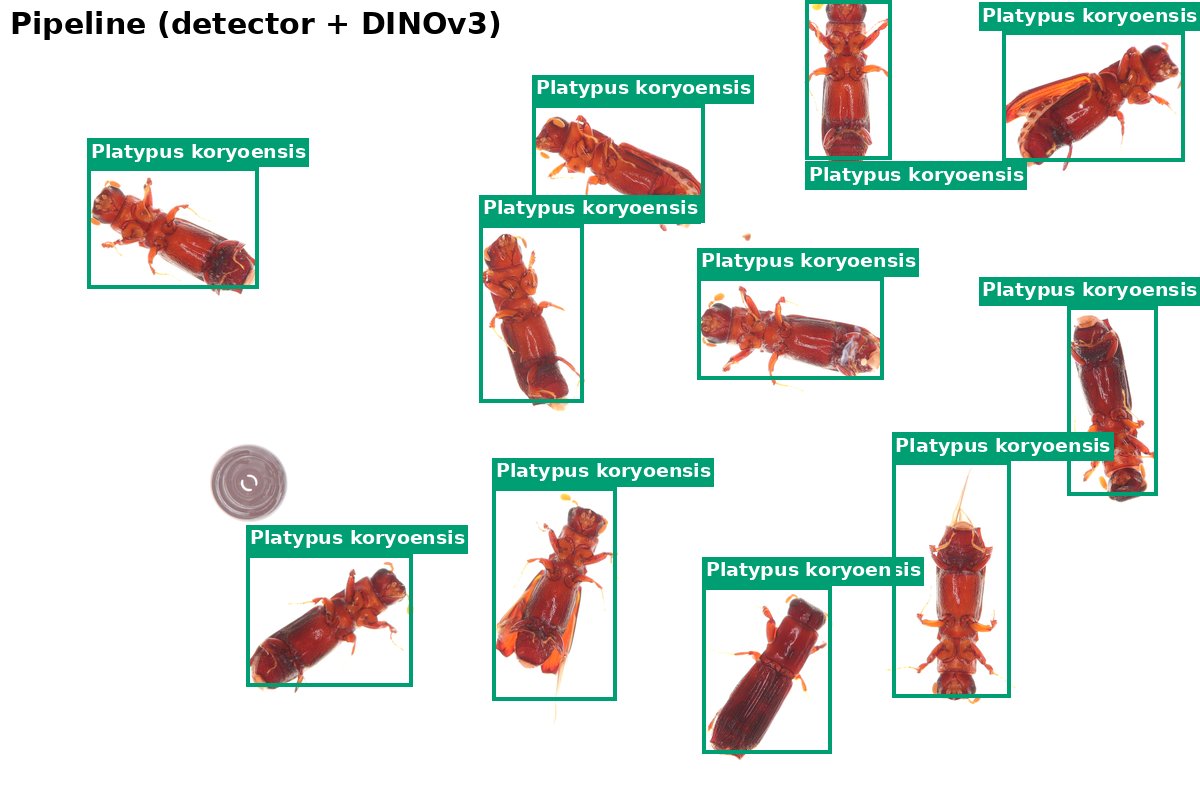

Trained species

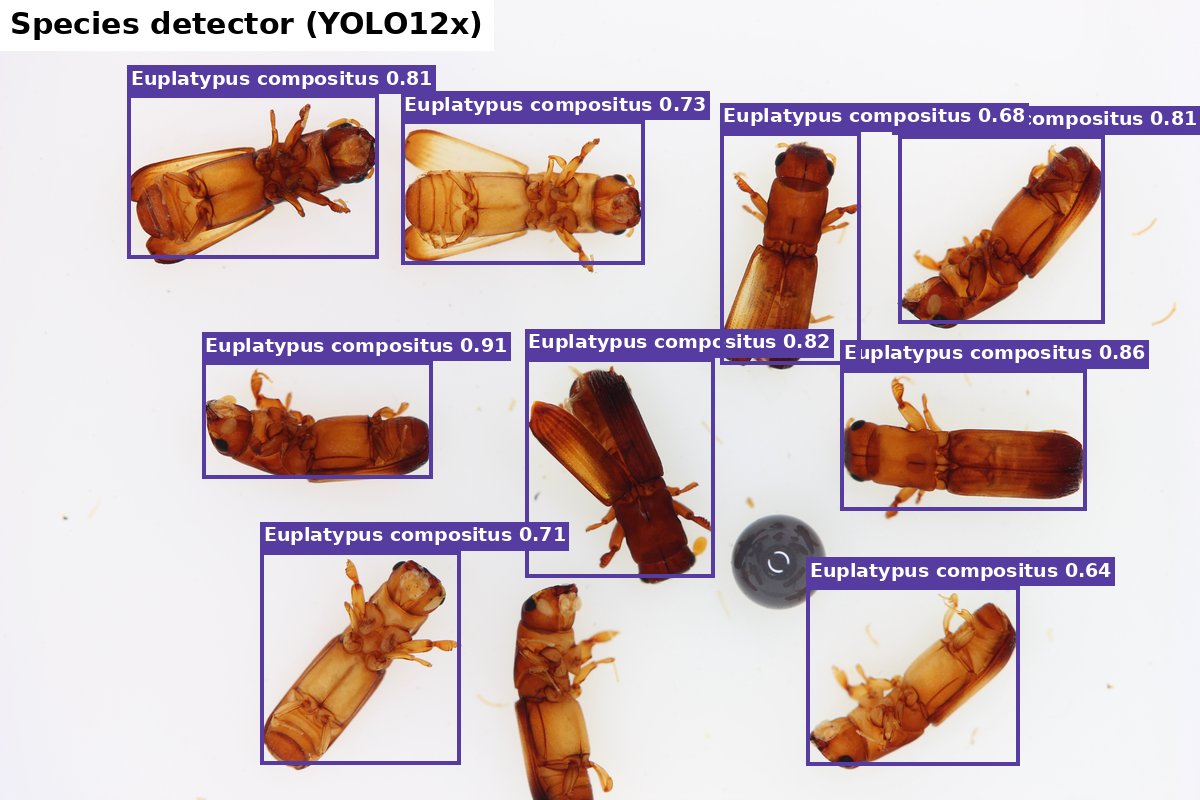

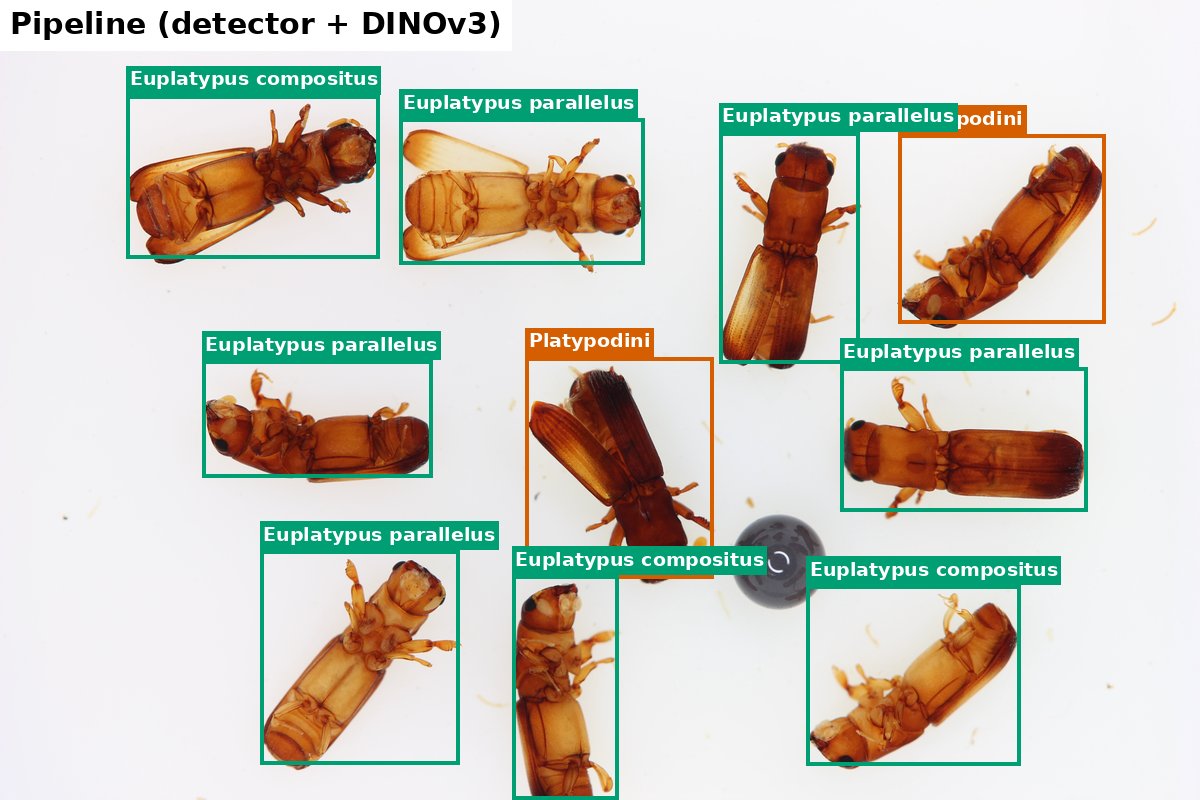

Unseen species

Pipeline colours: green = species, orange = genus, dark orange = tribe, pink = subfamily, red = unrecognised. More examples, including the arthropod and zero-shot detectors, are in the usage guide.

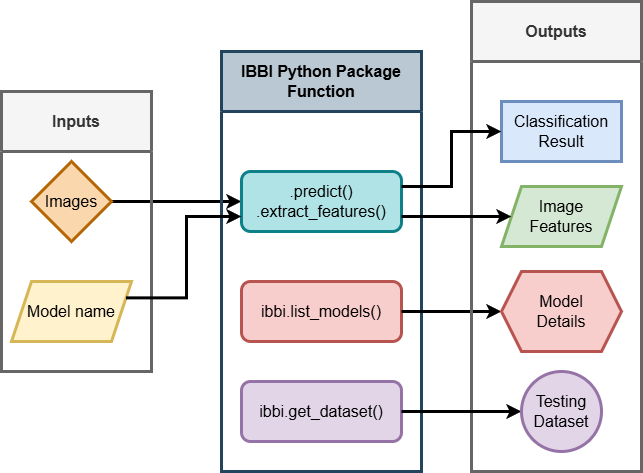

How it works

flowchart LR
    A[Image] --> B[Arthropod detector<br/>YOLO11x, any arthropod]
    B -->|boxes| C[Crop each specimen]
    C --> D[Hierarchical classifier<br/>DINOv3-L or BioCLIP 2]
    D --> E["Per level: taxon, calibrated probability,<br/>novelty score, known / unsure"]
    E --> F["Reported identification:<br/>species | Genus sp. | Tribe | Subfamily | unrecognised"]
    A --> G[Species detector<br/>one step, 65 species]
    A --> H[Zero-shot detector<br/>text prompts]
